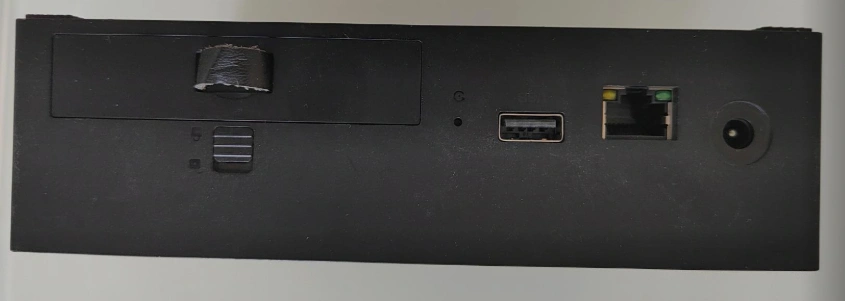

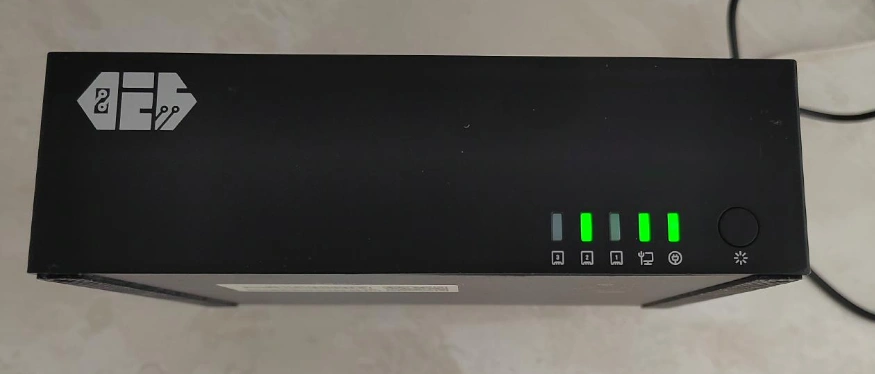

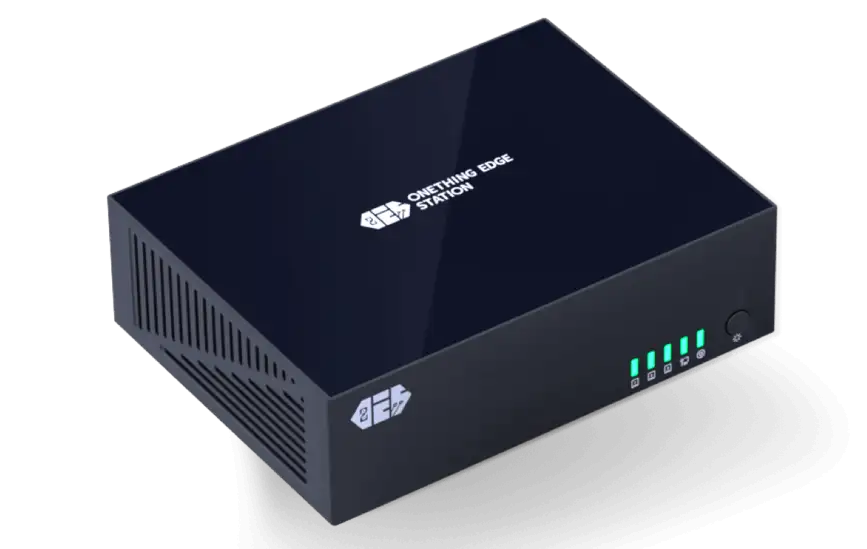

oes配置：A311D(六核RAM处理器)，RAM：4GB，ROM：8GB，三个2.5寸SATA硬盘位，一个USB接口，一个千兆网口，正是用做nas的好盒子。本文记录了刷机过程及踩过的坑。

下载刷机工具和刷机包

USB Burning Tool：点击下载
底包：点击下载
飞牛官方包：点击下载
此地址上有时间戳，不能点击时，https://fnnas.com/download-arm ，搜索oes。
github资源不能访问时，可在地址前加https://v6.qs100371.top/ 。

线刷底包

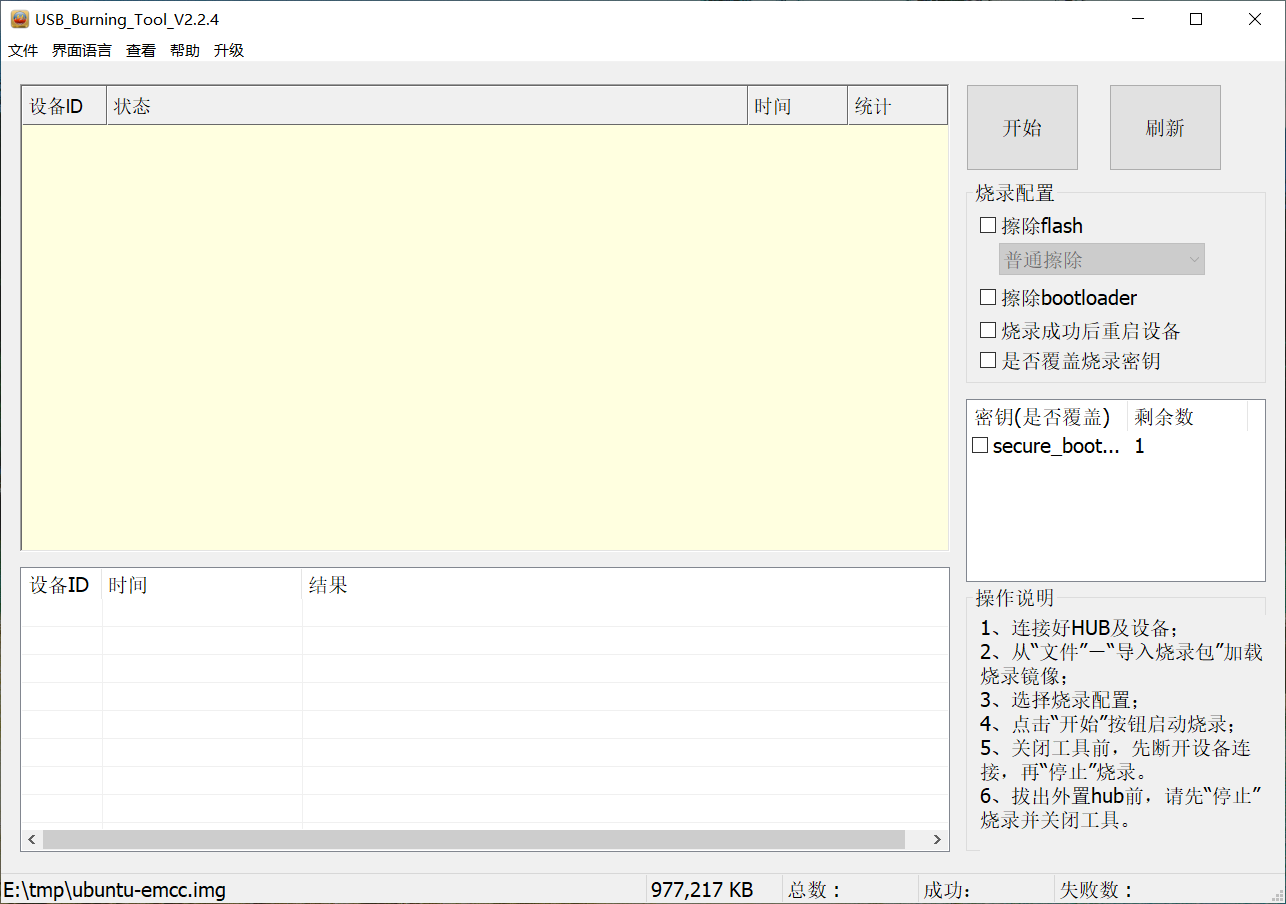

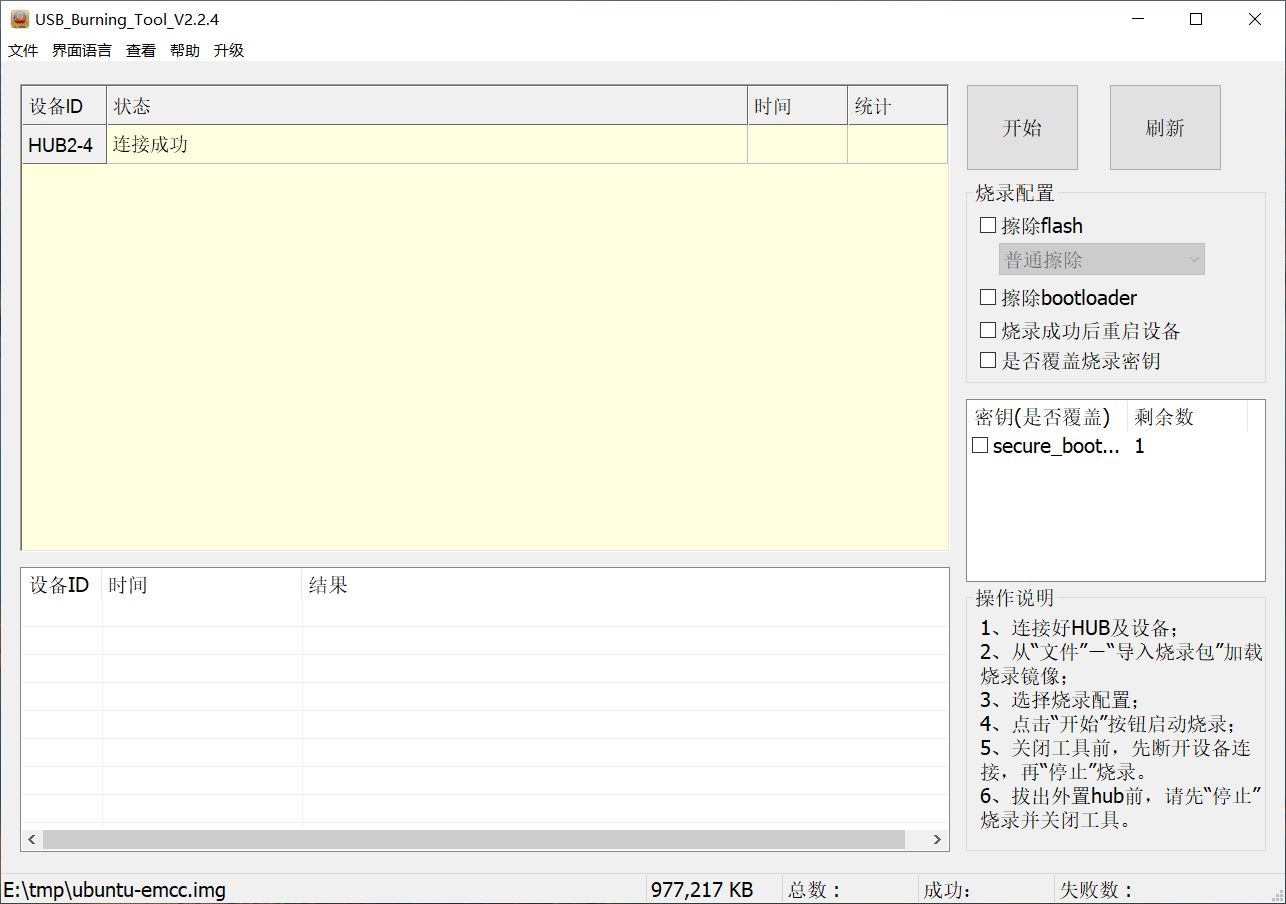

安装USB_Burning_Tool，SECURE_BOOT_SET文件复制到USB_Burning_Tool安装目录下的license目录里，再打开软件，导入底包oesp1.img，取消右侧的选项。

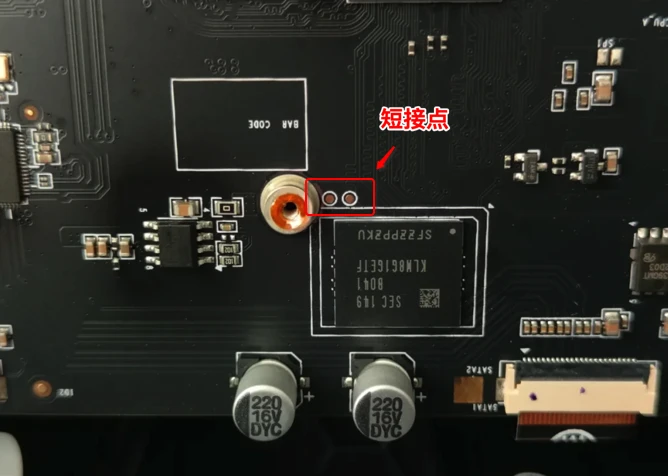

oes拆机，拆散热片，短接点如图所示，

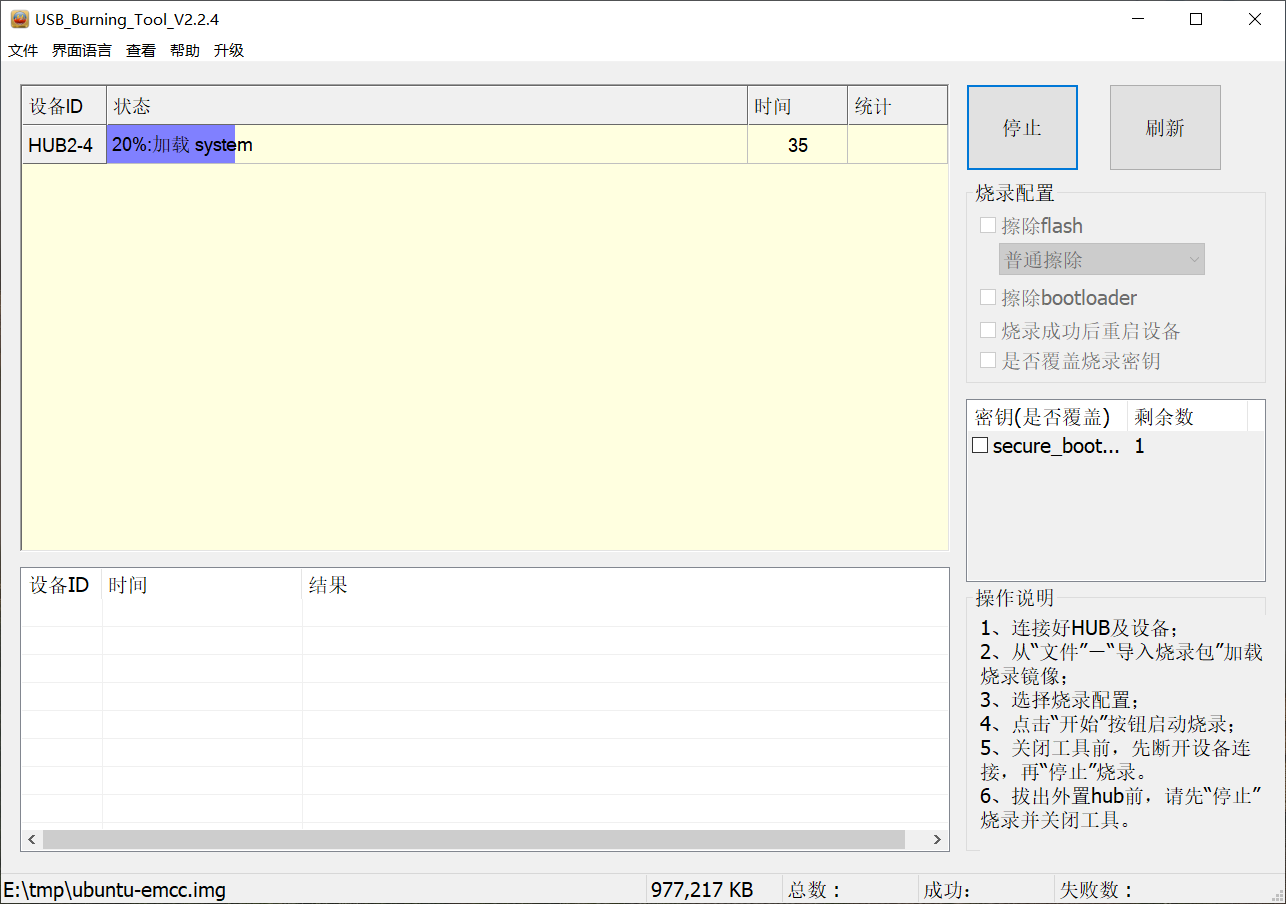

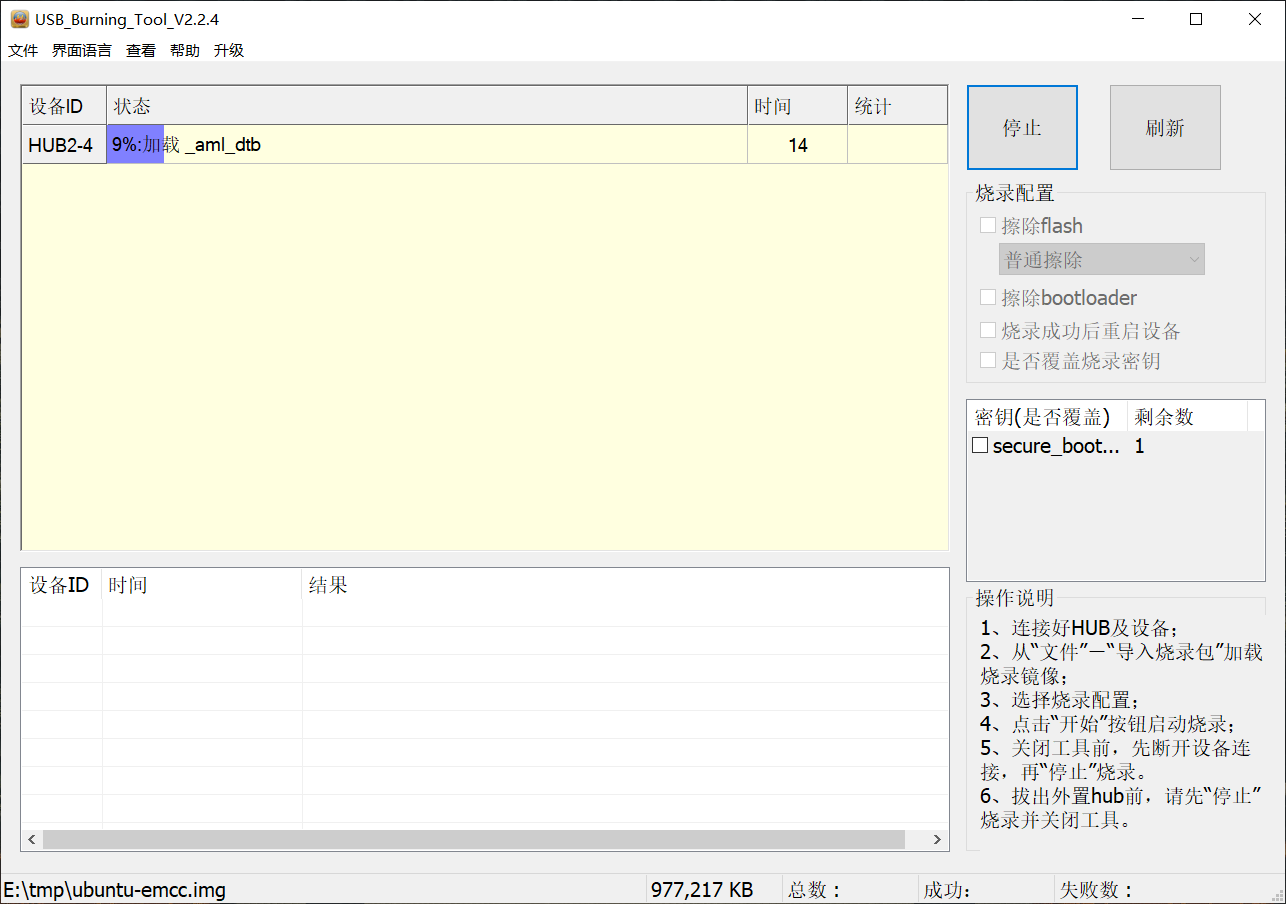

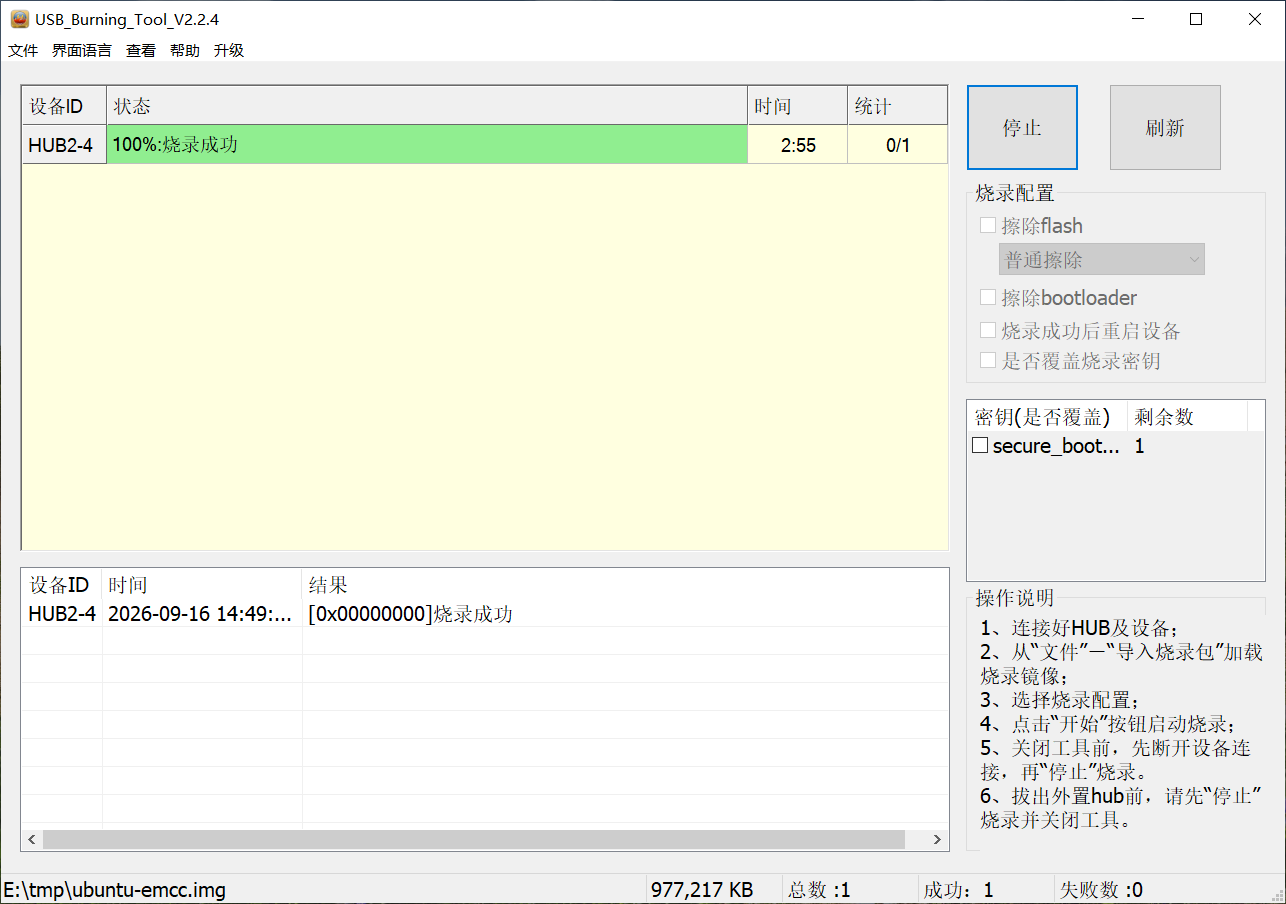

短接之后，用usb双公头线连接电脑和oes，插入oes电源，刷机工具提示连接成功即可松开短接。点击开始，等待进度条提示完成刷机。

短接刷机时注意，由于oes是独立电源，在短接不成功时，一定要先拔下usb线，再拔电源线，否则有电流冲击笔记本主板，可能导致电脑锁死。因为这个，轻薄本多次黑屏无响应，拆机拔电池排线才恢复。

安装飞牛

用rufus或balenaEtcher把官方刷机包img文件写入u盘，插入oes，接上电源，会从u盘启动飞牛系统，启动后从路由器后台找新加入设备的ip，用浏览器打开ip:5666，设置飞牛账号并打开账号的ssh权限。用创建的帐号ssh登入飞牛，运行

1 2	sudo -i ./install-to-emmc.sh

把u盘中的飞牛写入emmc。
系统输出：

Start script create MBR and filesystem
Unmount disks mounted by trim
umount: /vol*/*: no mount point specified.
Start backup u-boot default
4+0 records in
4+0 records out
4194304 bytes (4.2 MB, 4.0 MiB) copied, 0.0734933 s, 57.1 MB/s
Start create MBR and partittion
Start restore u-boot
442+0 records in
442+0 records out
442 bytes copied, 0.0205248 s, 21.5 kB/s
8191+0 records in
8191+0 records out
4193792 bytes (4.2 MB, 4.0 MiB) copied, 0.679211 s, 6.2 MB/s
Done
Start copy system for eMMC.
Formatting BOOT partition...mkfs.fat 4.2 (2021-01-31)
done.
mount: (hint) your fstab has been modified, but systemd still uses
       the old version; use 'systemctl daemon-reload' to reload.
Cppying BOOT...done.
Edit init config...done.
Formatting ROOT partition...
btrfs-progs v6.2
See http://btrfs.wiki.kernel.org for more information.

Performing full device TRIM /dev/mmcblk1p2 (6.15GiB) ...
NOTE: several default settings have changed in version 5.15, please make sure
      this does not affect your deployments:
      - DUP for metadata (-m dup)
      - enabled no-holes (-O no-holes)
      - enabled free-space-tree (-R free-space-tree)

Label:              ROOT_EMMC
UUID:               afd81fd2-3241-4fad-bcc5-f3d4a996d01e
Node size:          16384
Sector size:        4096
Filesystem size:    6.15GiB
Block group profiles:
  Data:             single            8.00MiB
  Metadata:         DUP             256.00MiB
  System:           DUP               8.00MiB
SSD detected:       yes
Zoned device:       no
Incompat features:  extref, skinny-metadata, no-holes
Runtime features:   free-space-tree
Checksum:           crc32c
Number of devices:  1
Devices:
   ID        SIZE  PATH
    1     6.15GiB  /dev/mmcblk1p2

done.
Copying ROOTFS.
mount: (hint) your fstab has been modified, but systemd still uses
       the old version; use 'systemctl daemon-reload' to reload.
Copy BIN
Create DEV
Copy ETC
Copy HOME
Copy LIB
Copy LIB64
tar: lib64: Cannot stat: No such file or directory
tar: Exiting with failure status due to previous errors
Create MEDIA
Create MNT
Copy OPT
Create PROC
Copy ROOT
Create RUN
Copy SBIN
Copy SELINUX
tar: selinux: Cannot stat: No such file or directory
tar: Exiting with failure status due to previous errors
Copy SRV
Create SYS
Create TMP
Copy USR
Copy VAR
tar: var/lib/samba/winbindd_privileged/pipe: socket ignored
Edit fstab...done.
*******************************************
Complete copy OS to eMMC
*******************************************
